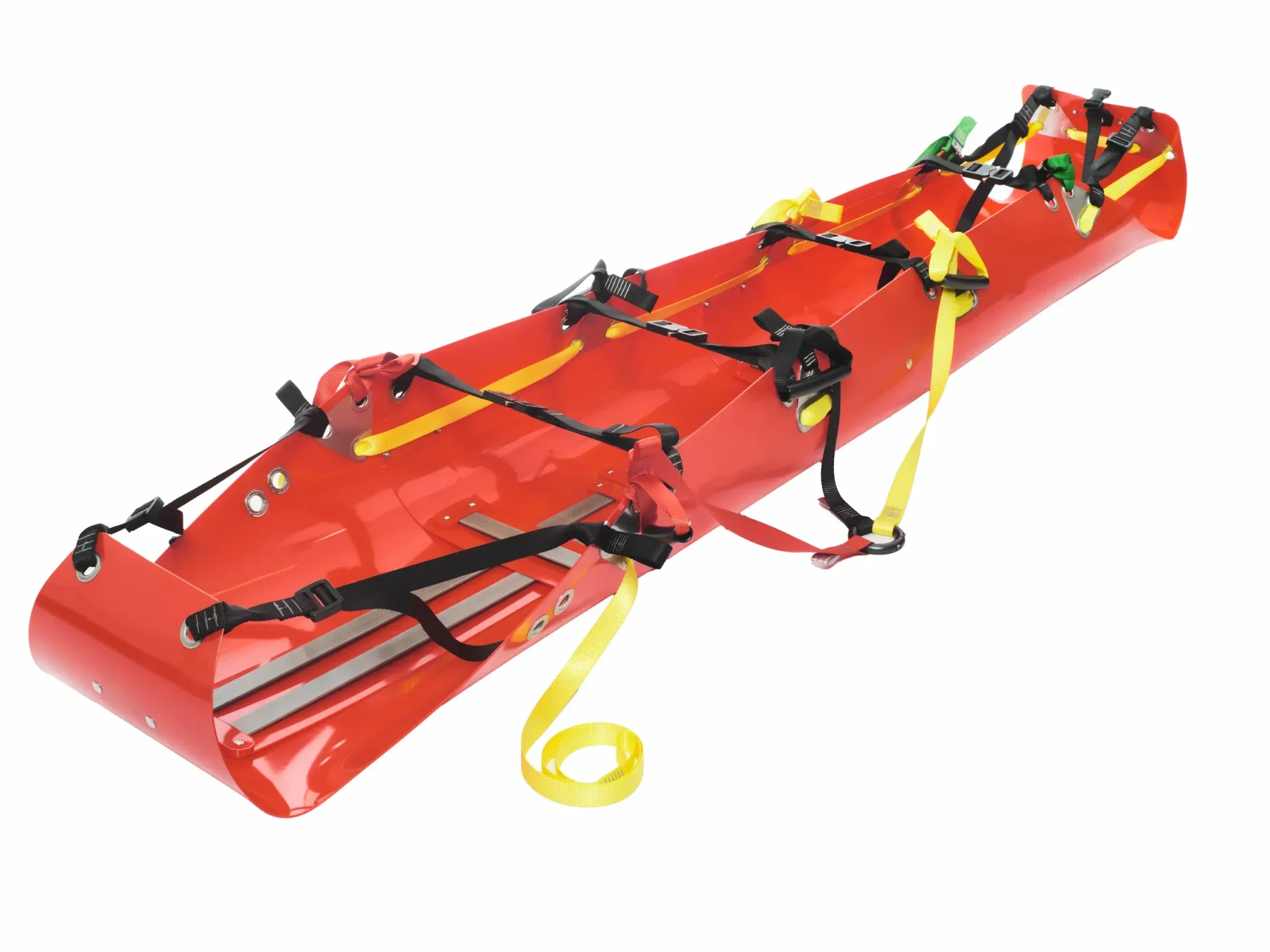

The optimal solution for rescue in confined spaces, heights, depths and horizontal rescues. The patented RollUP system combines the advantages of a roll-up stretcher with the rigidness of a basket carrier.
The RL2700RX-V203 is designed for hoisting by helicopter or hoisting in caves or industrial confined spaces. Once the patient is secured, the stretcher becomes rigid. Integrated struts prevent the stretcher from buckling and prevents pressure being exerted on the patient during the rescue. The integrated struts can be removed before use if necessary - especially in tight spaces. All components are designed for chemical resistance and easy cleaning (decontamination or disinfection) For convenience, the stretcher can be rolled up and stored in an included backpack.
Length: 244 cm
Width: 70 cm
Color: RAL 3020 / RED / rescue Red
Material PEHD 2mm Handles 8 pc – 6 of them integrated into the integrated lifting bridle
Fastening straps: 4 patient straps / 1 head end strap / 1 foot end strap
Package size: About 70 cm height / 26 cm width
Weight: 7 kg UDI-DI – GTIN: 9010710137027
Classification: Medical device class 1
Working temperature: -30°C to +50°C
Applied standard
civil EN 1865-1:2010 + A1:2015 / EN 1865-2:2010 + A1:2015 EN 1789:2020 / EN 62366-1:2017-07; EN1498:2006
Military approved standards ZDV 19/1 / TLF 1500 – 850/84 / EN 12321 / DIN 30781 / MIL-STD 810 G
