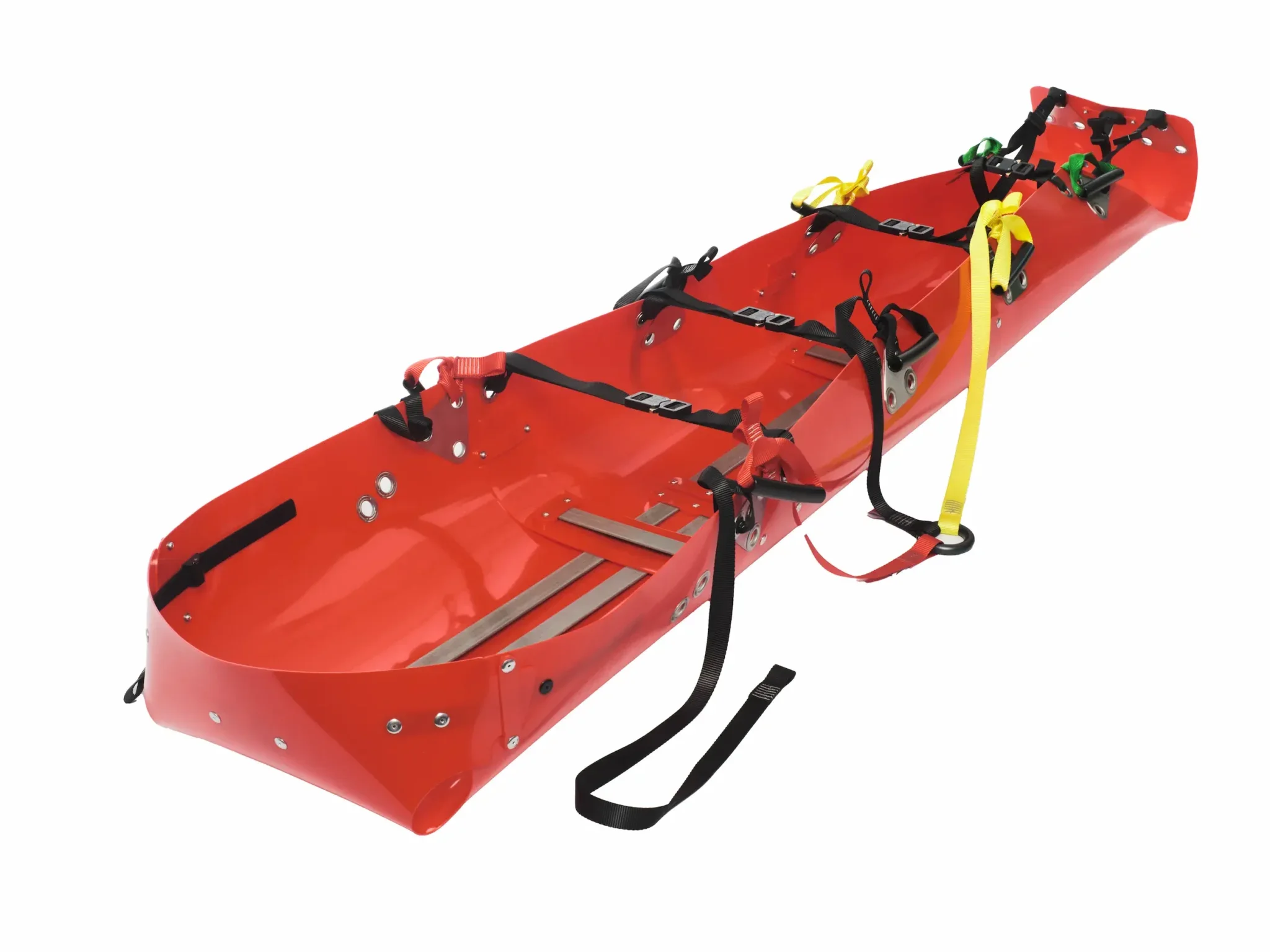

US Model for Civilian Rescue | Integrated lifting bridle, enclosed head area | 70cm width / 244cm length
The optimal solution for civilian rescue in confined spaces, heights, depths and horizontal rescues. The patented RollUP system combines the advantages of a roll-up stretcher with the rigidness of a basket carrier.
Length: 244 cm
Width: 70 cm
Color: RAL 3020 / RED / rescue Red
Material PEHD 2mm
Handles 8 pc – 6 of them integrated into the integrated lifting bridle
Fastening straps: 4 patient straps / 1 head end strap / 1 foot end strap
Package size: About 70 cm height / 26 cm width
Weight: 7 kg UDI-DI – GTIN: 9010710137034
Classification: Medical device class 1
Working temperature: -30°C to +50°C
Applied standard
civil EN 1865-1:2010 + A1:2015 / EN 1865-2:2010 + A1:2015 EN 1789:2020 / EN 62366-1:2017-07; EN1498:2006
Military approved standards ZDV 19/1 / TLF 1500 – 850/84 / EN 12321 / DIN 30781 / MIL-STD 810 G
